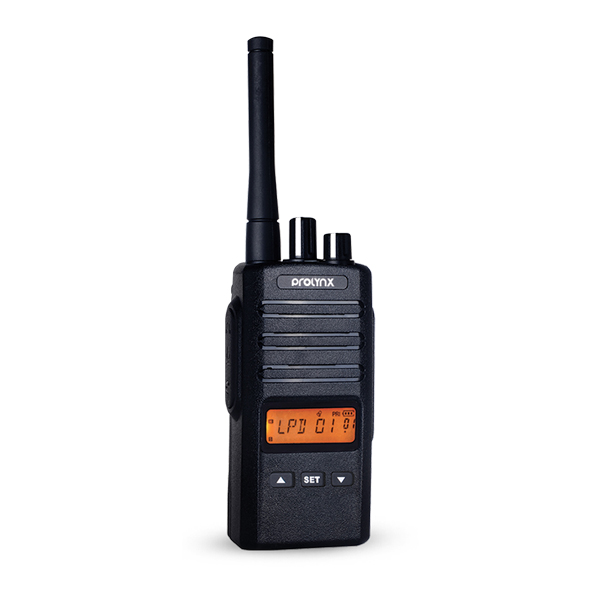

Thank you very much for using Prolynx two way radios.
This product has a newly developed function menu and humanism operating design, making it easy to use. It will meet your requirement by the compact size and reasonable price.
Though friendly design for user, this transceiver is technically complicated and some features may be new to you.
| GENERAL | : |
|---|---|
| Frequency | 144 – 148MHz |
| Channel | 200 |
| Frequency Stability | ±1ppm |
| Operating Temperature | -30ºC ~ +60ºC |
| Operating Voltage | 13.8V DC |
| Dimension | 107 x 125 x 45 mm |
| RECEIVER | : |
| Sensibility | 0.2µV |
| Adjacent Channel Selectivity | 60dB @ 12.5 KHz |
| Inter Modulation | ≥60dB / ≥65dB |
| Spurious Rejection | ≥70dB |
| Audio Response | +1 ~ -3dB |
| Audio Distortion | < 5% |
| FM hum and noise | ≥45db @ 25KHz |
| Rated Audio | 3W |
| TRANSMITTER | : |
| Output Power | 25W |
| Transmitting Current | 4A @ 13.8V |
| Standby Current | 0.2A @ 13.8V |
| FM Modulation | Wide Band: 16KøF3E |
| Modulation Distortion | < 5% |
| FM hum and noise Transmitter | ≥45dB @ 25KHz |
| Adjacent Channel Power | ≥60dB @ 12.5KHz |
| Audio Response Transmitter | +1 ~ -3dB |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
