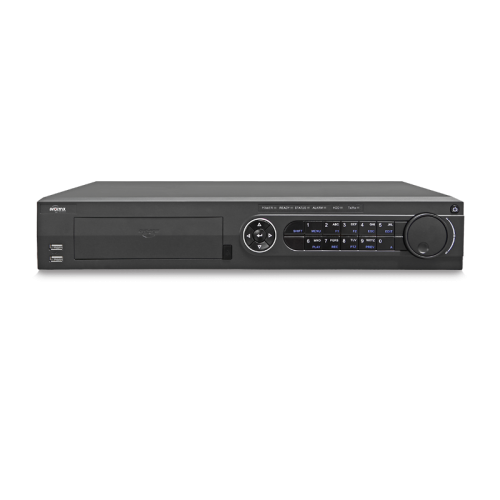

You can record high quality videos using the PL-4NVR016 IP camera system. This NVR for IP cameras offers support for multiple recording resolutions. It supports connectivity with different mediums allowing you to easily share the video content. It works well with third party networks.
[usr 5]
| Model | PL-4NVR0616-16P |
|---|---|
| VIDEO/AUDIO INPUT | : |
| IP video input | 16-ch |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Incoming bandwidth | 160Mbps |
| Outgoing bandwidth | 128 |
| VIDEO/AUDIO OUTPUT | : |
| Recording resolution | 6MP / 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Frame rate | Main stream: 50 fps (P) / 60 fps (N) – Sub-stream: 50 fps (P) / 60 fps (N) |
| HDMI/VGA output | 1-ch, resolution: 1920 ×1080 /60Hz, 1600 ×1200 /60Hz, 1280 ×1024 /60Hz, 1280 ×720 /60Hz, 1024 ×768 /60Hz |
| Audio output | 1-ch, RCA (Linear, 1KΩ) |
| DECODING | : |
| Live view / Playback resolution | 6MP / 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| HARD DISK | : |
| SATA | 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs |
| eSATA (Optional) | 1 eSATA interface |
| Capacity | Up to 6TB capacity for each HDD |
| EXTERNAL INTERFACE | : |
| Network interface | 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface |
| Serial interface | RS-232 and RS-485 |
| USB interface | 2 ×USB 2.0 + 1 ×USB 3.0 |
| Alarm in / out | 16 / 4 (optionally can be expanded to 16 / 8) |
| PoE | : |
| Interface | 16 independent 100 Mbps PoE network interfaces |
| Max. Power | 200W |
| Supported standard | AF and AT |
| GENERAL | : |
| NETWORK | : |
| Power supply | 100 ~ 240 VAC |
| Consumption (without H.disk,DVD-R/W or PoE) | ≤ 20 W |
| Working temperature | -10OC ~ +55OC (14OF ~ 131OF) |
| Working humidity | 10 % ~ 90 % |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimensions (W ×D ×H) | 445 ×390 ×70 mm ( 17.5"×15.3" ×2.8") |
| Weight (without hard disk or DVD-R/W ) | ≤ 4 kg (8.82 lb) |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
